MWF

The completes framing solution for light gauge steel in Revit®

MWF is an extension that runs on top of Revit Structure, Architecture and MEP. The program is suitable for Engineers, builders, contractors and component suppliers. Works for Light Gauge Steel and Stickframe construction.

• Rules Rules-basedate driven software.
• Auto detects Revit walls, windows, doors and openings.

MWF supports

• Any Revit wall style and curtain walls.
• Horizontal and vertical wall sectioning.
• Rectangular and gabled roof lines.
• MWF Floors – Revit Floor elements and openings.

MWF automatically generates

• Extra studding around openings based on user-defined preferences;
• Internal and external sheathing, bracing and extra studs;
• Kickers and Equipment backing members
• Automatically assigns panel numbering and shape labelling.

MWF automatically generates

• NC output for rollformer machines.
• B.O.M./cut list.

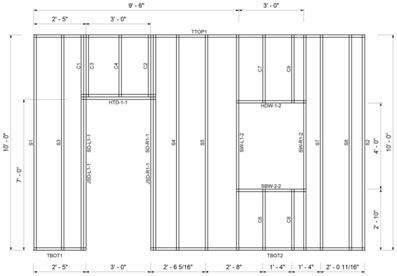

• 2D layout views and Parametric Viewports

MWF other major features

• Deflection Members.
•
Panel joint creation interface.
• Panel breakup markers.
• Reverse studying propagation.
• MEP clash detection with automatic opening and framing creation.
• MWF Floors: Floor creation with control of member cutbacks and extra operations.

MWF Floors

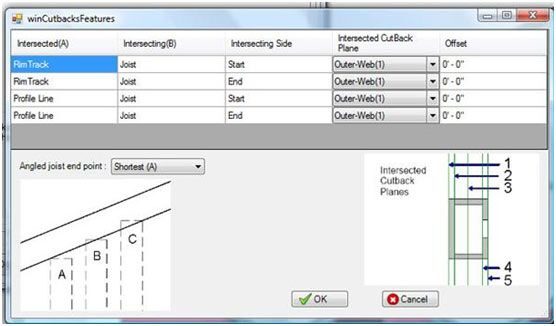

• Floor creation with control of member cutbacks and extra operations.
• Balloon, platform or custom support conditions.
• Joist arrangement and panelizing.
• Automated framing of openings.
• Shop Drawings.
